VERNICOS MASTER

ASD TUG “VERNICOS MASTER” BHP. 3.600

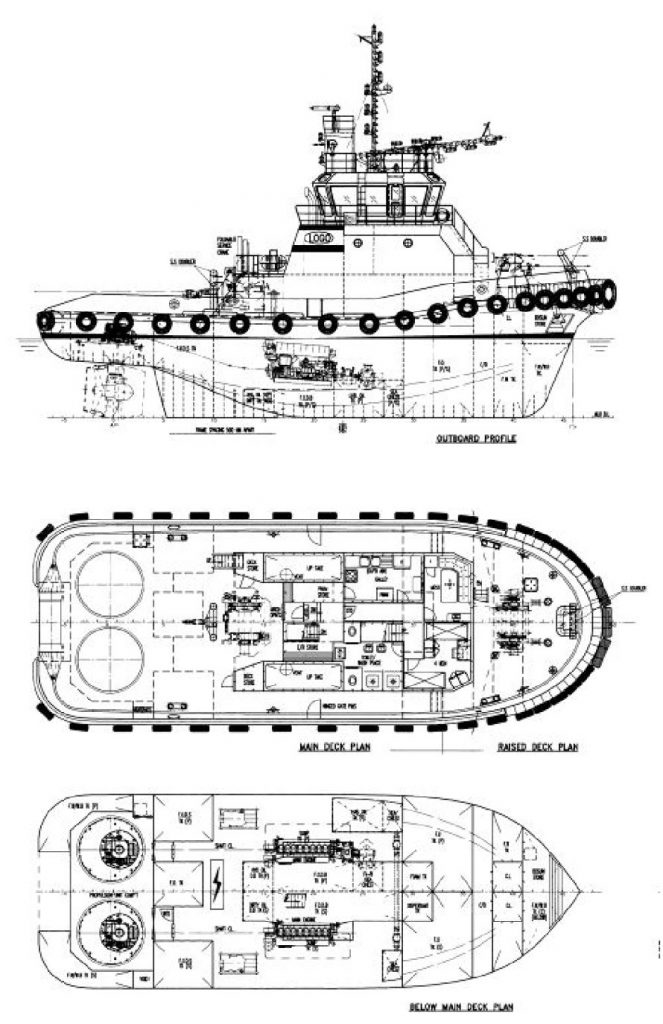

Side View Top View Wheelhouse

PRINCIPAL PARTICULARS

Built: 2006 / WUXI SHIPYARD – CHINA
Port of Registry: Piraeus – Greece
Flag: Greek
Call Sign: SVA 2352
Class Society: LRS 100 A1 Harbour Tug FiFi1 Notation
IMO No. 9381469
MMSI No. 240917000

PERFORMANCE DATA

Max Speed: 12 knots
Bollard Pull: 45 MT
Consumption:
Eco Speed:8.5Tons/Day on 9 Knots
Max Speed 11Tons/Day on 12 Knots

MAIN MACHINERY & PROPULSION UNIT

Main Engines:2x YANMAR 8N 21A-EN
Propulsion:2xSCHOTTEL SRP 1010 FIXED PITCH
Horsepower:(2×1800 HP @ 900Rpm) 3600 BHP
Reduction Gear:SCHOTTEL
Generators:2x VOLVO PENDA D7 A-T 99KW

NAVIGATION & COMMUNICTATION EQUIPMENT

A3 / GMDSS
1x Radars X-Band / S-Band – Mob. GSM
Echo Sounder – Speed Log – Anemometer – GPS– Auto Pilot
Magnetic Compass –Gyro Compass – AIS – MF/HF SSB – Inmarsat-D
VHF – NAVTEX – SART – EPIRB – VHF/DSC System Class B

DIMENSIONS

Length Overall: 27.7m
Beam, MLD: 9.80m
Max Operating Draft: 4.80m
Depth: 6.5m
GT: 318
NT: 95
Accommodation: 2×2 + 1×2 +2 1×3 = 9 berths

DECK EQUIPMENT

Towing Winch:TH-45 HTW – M05 / 019B
Towing FWD:
20 5U3-10 HAMW-M05 / 019A
Breaking Load: 180mt
Deck Crane: Palfinger 6.5T / 1.8m
Anchors / Chain: 2x495Kg , Chain 192m T = 19mm

CARGO & TANK CAPACITIES

Fuel Oil: 130m3
Fresh Water: 33.5m3
Foam: 10m3
Lub Oil: 6.2m3

FIRE FIGHTING

FiFi Pump: 1x 1500 m3 /hr
FiFi Monitors: 2 Water / Foam Remote
Foam in Tank: 10m3

LIFE SAVING EQUIPMENT (In compliance with SOLAS)

6 Persons Lifeboat – 5 life Jackets – 2×8 Persons Liferafts

ADDITIONAL AUXILIARY SYSTEMS

Dispersant Storage Tank
