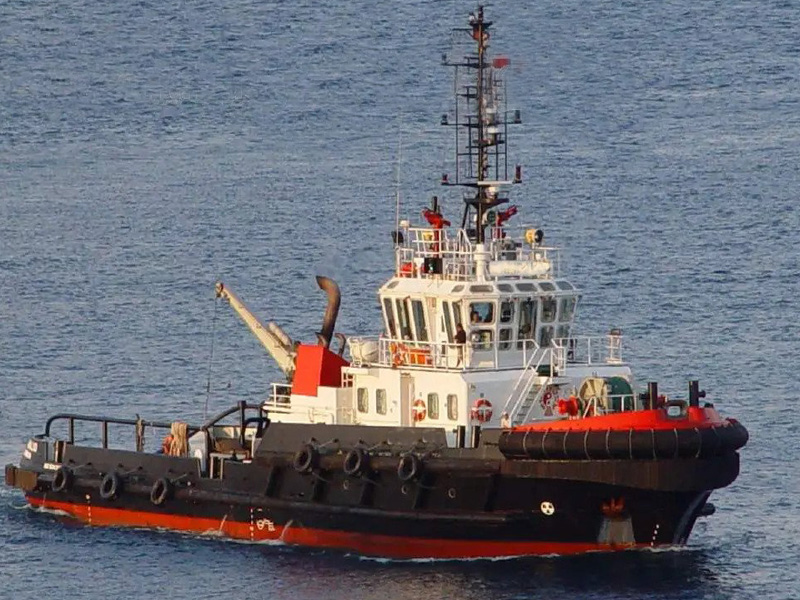

VERNICOS SCAFI II

ASD Escort AHT

PRINCIPAL PARTICULARS

Length overall: 38.0M
Length W. L.: 36.6M
Beam moulded: 11.0M
Depth moulded: 5.2M
Draft: 4.2M

Oil recovery
Fire fighting 1

MAIN MACHINERY & PROPULSION UNIT

Engines:  2 x Caterpillar 3516B, 2 x 2480 B.H.P. at 1600
rpm (A rating) continuous power
Generators Two (2) CATERPILLAR 3406 : 245 KW +1 Port
Gen 45KW +1 CAT 3412 E 1100Hp
Bow thruster : Tunnel Schottel Thuster 275 Hp
Position controls: SRP control fore and aft on wheelhouse +
Master Joy stick
Performance Speed: 13.0 knots at trial condition
Bollard pull: 78 Tons Ahead – 61 Tons Astern
Escort Towing performance Complying with Lloyd’s Register of Shipping
rules and regulations and with IMO stability’s
res. A 749 (18) for ESCORT TUGS
Towing equipment: AH Tow winch Plimsoll 200 T Static Load –60T
Dynamic –Tow drum 800 Mt 52 mm Wire/AH
drum/spare Tow 600 Mt 52mm Wire
Escort Winch: Escort winch Plimsoll 60T dynamic load /150 T
static – Plasma line 52 mm x 120mt – 200T
Break load
Crane: 1 Marine telescopic crane 3Tons at 12 mt radius
Navigations equipment: JRC GMDSS A2 –2x VHF –1 X SSB HF- 2x
Radar Marpa –2x digital charts plotter-AISGyro-
Echosounder Furuno-Navtec-
WeatherFax-Autopilot

DIMENSIONS

LENGHT OVERALL: 38,00 M
LENGHT WATERLINE: 36,60 M
BREADTH MOULDED: 11,00 M
BREADTH OVERALL: 12,00 M
DEPTH MOULDED: 5,20 M
DRAFT: 4,20 M
FUEL OIL: 140,0 T
FRESH WATER: 60,0 T
BOLLARD PULL(AHEAD): 78,0 T
BOLLARD PULL(ASTERN): 61,0 T
RECOVERY OIL: 205,0 T

DECK / TOWING EQUIPMENT

Towing winch 2 x SWL 20T

NAVIGATION / COMMUNICATION

Gyro, Magnetic Compass, Auto pilot
Radar, Echo sounder, GPS, AIS
GMDSS A3: VHF / DSC System Class A
Inmasart: Furuno Felcom
2 Way VHF
